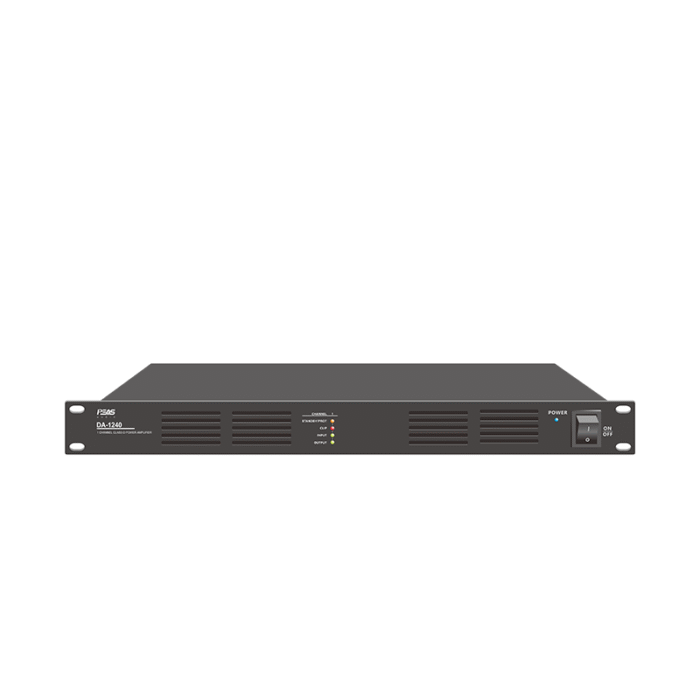

DA-1240 1 Channel 240W digital Amplifier
·channel with high-cut filter
· Separate speaker outputs 8Ω/100V
· Each input with separate gain control
· DC 24V battery input already included
· Wide AC input from 110V to 230V input
· Balanced XLR input by phoenix connector
· Rated power output at 120/240/350/500/1000/2000W
· Separate channel indicators for protection, clip, input and output
· Complete short circuit, overload, high temp, clip and DC protection
| Model | DA-1120 | DA-1240 | DA-1350 | DA-500 | DA-1000 | DA-1500 |
| Rated Power Output | 120W | 240W | 350W | 500W | 1000W | 1500W |
| Speaker Output | 8Ω & 100V | |||||
| Frequency Response | 20Hz-20KHz (+1/-2dB) | |||||
| L/H Cut ON | 70Hz-10KHz (+1/-3dB) | |||||
| THD | <0.1% (1KHz/-3dBv, 100W) | |||||
| S/N Ratio | >80dB | |||||
| Crosstalk | >60dB, 1KHz, Max output | |||||
| Power Consumption | 180W | 300W | 420W | 540W | 660W | 780W |
| Power Supply | Wide AC input from 110V to 230V, 50-60Hz& DC24V input | |||||
| Dimension | 482(W)x420(D)x44(H) mm | |||||
| Weight | 4.2kg | 4.5kg | 5.0kg | 5.5KG | 6.0KG | 6.5KG |
