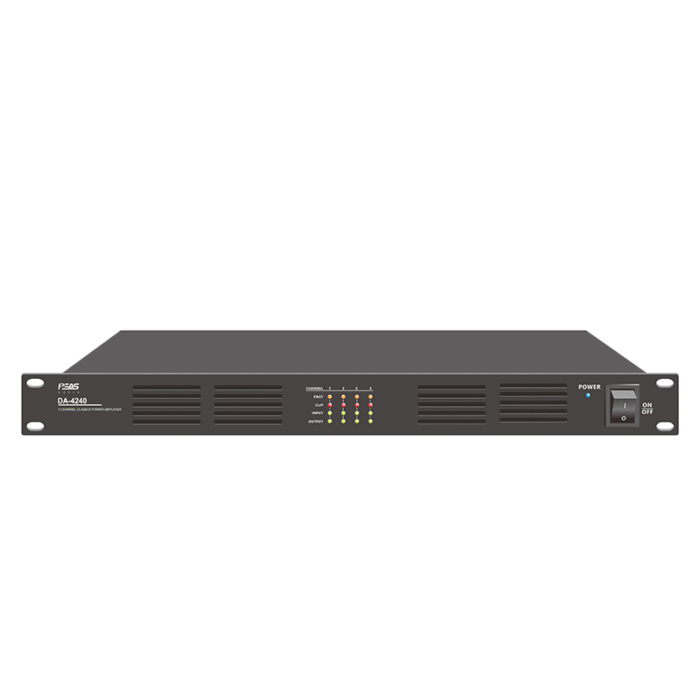

DA-4240 4 Channel 240W digital Amplifier
• Switching power digital power amplifier
• Class-D PA power amplifier of minimum power consumption
• Rated power output at 120W,240W,350W and 500W by four channels
• Four channel separate speaker outputs 4-16Ω/100V
• Balanced XLR input by phoenix connector for four channels
• Each input with separate gain control.
• Each four channel with high-cut filter.
• Built-in auto standby feature to save power consumption
• Separate four channel indicators for protection, clip, input and output
• Complete short circuit, overload, high temp, clip and DC protection
• Wide AC input from 110V to 230
| Model | DA-4120 | DA-4240 | DA-4350 | DA-4500 |
| Rated output | 4*120W | 4*240W | 4*350W | 4*500W |
| Speaker Output | 4-16 Ω&100V | |||
| THD | THD<0.1%(1KHz/-3dB, 100W) | |||
| Frequency Response | 70Hz-10KHz (+1/-3dB) | |||
| Input | 0.775V, 0dBu, balanced phoenix connector by two channels | |||
| Input lmpedance | 10KΩ | |||
| Crosstalk | >60dB,1KHz, Max output | |||
| Power Supply | 482(W)x420(D)x44(H) mm | |||
