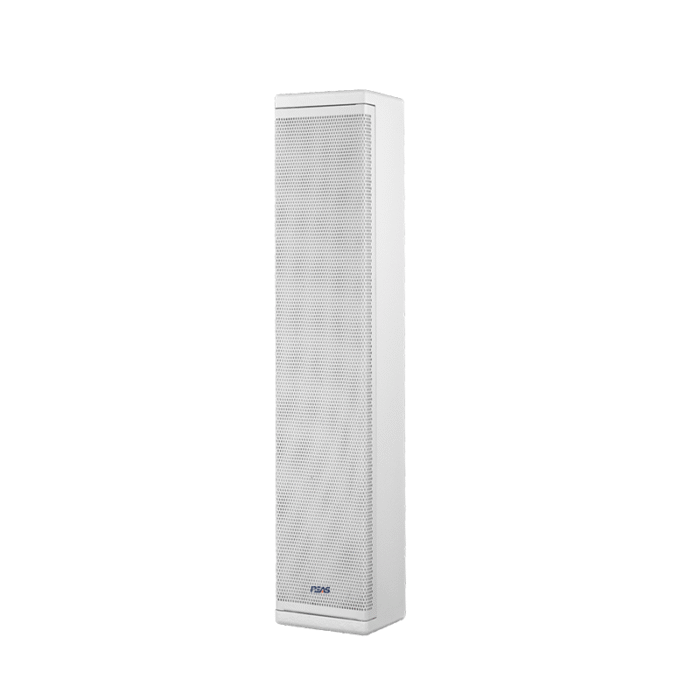

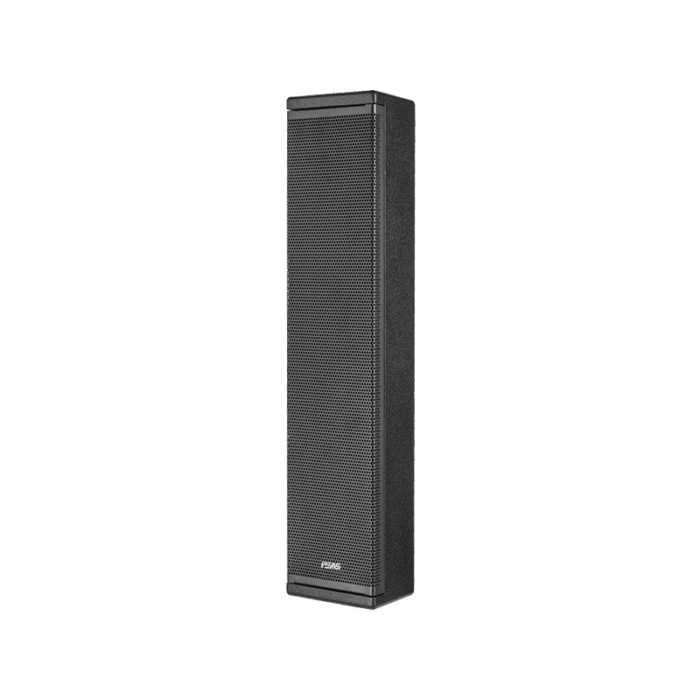

LA-2280 2.25”Ultra-thin Full-range Line Array louderspeaker
- 2.25” Full-range Column Speaker
- 8×2.25”(55mm)/ 0.75”voice coil
- Rated power: 180W
- Peak Power:720W
- It is suitable for conference rooms, performance halls, multi-functional halls, etc.
| Model | LA-2290 | LA-2280 | LA-2270 | LA-2260 |
| Speaker Unit | 4×2.25''(55mm)/ 0.75''voice coil | 8×2.25''(55mm)/ 0.75''voice coil | 12×2.25''(55mm)/ 0.75''voice coil | 16×2.25''(55mm)/ 0.75＂voice coil |
| Rated impedance | 8 ohm | 4 ohm | 6 ohm | 8 ohm |
| Rated power | 90W | 180W | 270W | 360W |
| Peak power | 360W | 720W | 1080W | 1440W |
| Frequency response range | 88Hz-20KHz | 85Hz-20KHz | 82Hz-20KHz | 80Hz-20KHz |
| Sensitivity: | 93dB/M/W | 95dB/M/W | 97dB/M/W | 98dB/M/W |
| Directivity | 120°×30° | |||
| Max sound pressure | 112dB | 115dB | 118dB | 120dB |
| Protection net | Steel mesh | |||
| Wiring method | NL4*1+1 wire clip | |||
| Net weight | 2.5kg | 5.5kg | 7.5kg | 9.5kg |
| Dimensions (WxDxH) | 96×75 ×460mm | 96×75 ×910mm | 96×75 ×1155mm | 96×75 ×1398mm |
