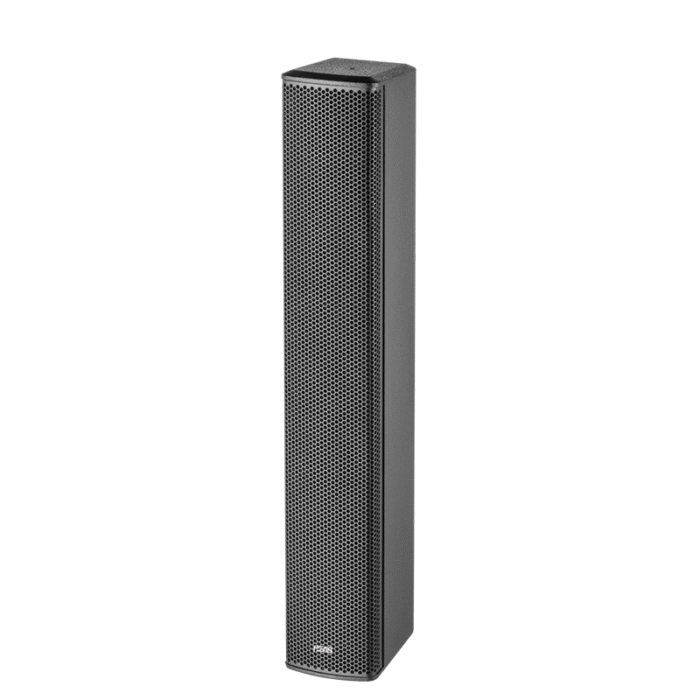

LA-3380 3‘’ Full-range Line array louderSpeaker
- 3” Full-range Column Speaker
- 8×3″ (75mm)/0.75″ voice coil
- Rated power: 180W
- Peak Power: 720W
- It is suitable for conference rooms, performance halls, multi-functional halls, etc.
| Model | LA-3390 | LA-3335 | LA-3380 |
| Speaker Unit | 4×3" (75mm)/0.75" voice coil | 6×3" (75mm)/0.75" voice coil | 8×3" (75mm)/0.75" voice coil |
| Rated impedance | 4 ohm | 6 ohm | 8 ohm |
| Rated power | 90W | 135W | 180W |
| Peak power | 360W | 540W | 720W |
| Frequency response range | 95Hz-20KHz | 93Hz - 20KHz | 92Hz - 20KHz |
| Sensitivity: | 93dB/M/W | ||
| Directivity | 120°×70° | ||
| Max sound pressure | 112dB | 114dB | 115dB |
| Protection net | Steel mesh
Steel mesh Steel mesh |
||
| Wiring method | 1 wire clip | ||
| Net weight | 4.5kg | 6.3kg | 8kg |
| Dimensions (WxDxH) | 115×142 ×374mm | 115×142×534mm | 115×142 ×694mm |
