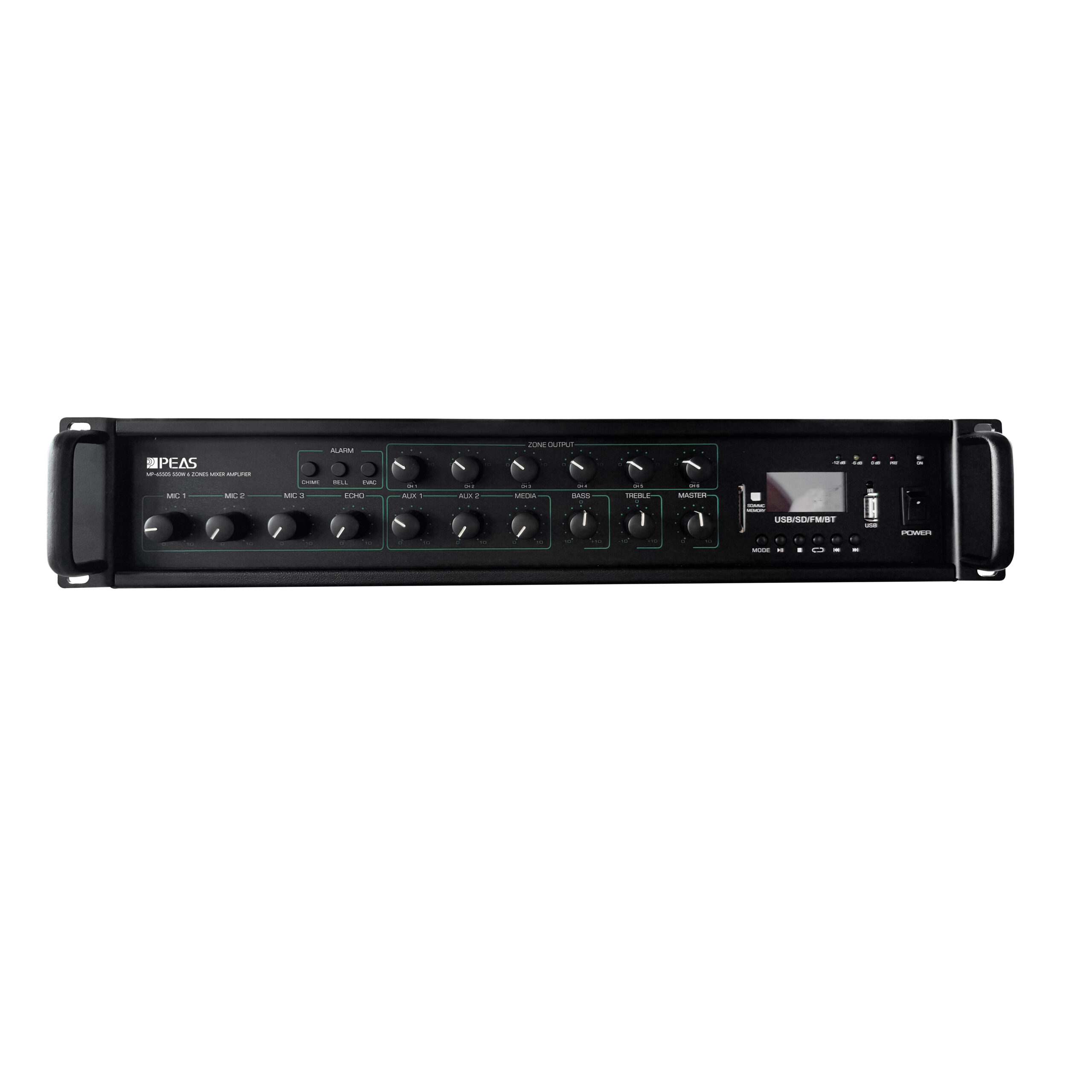

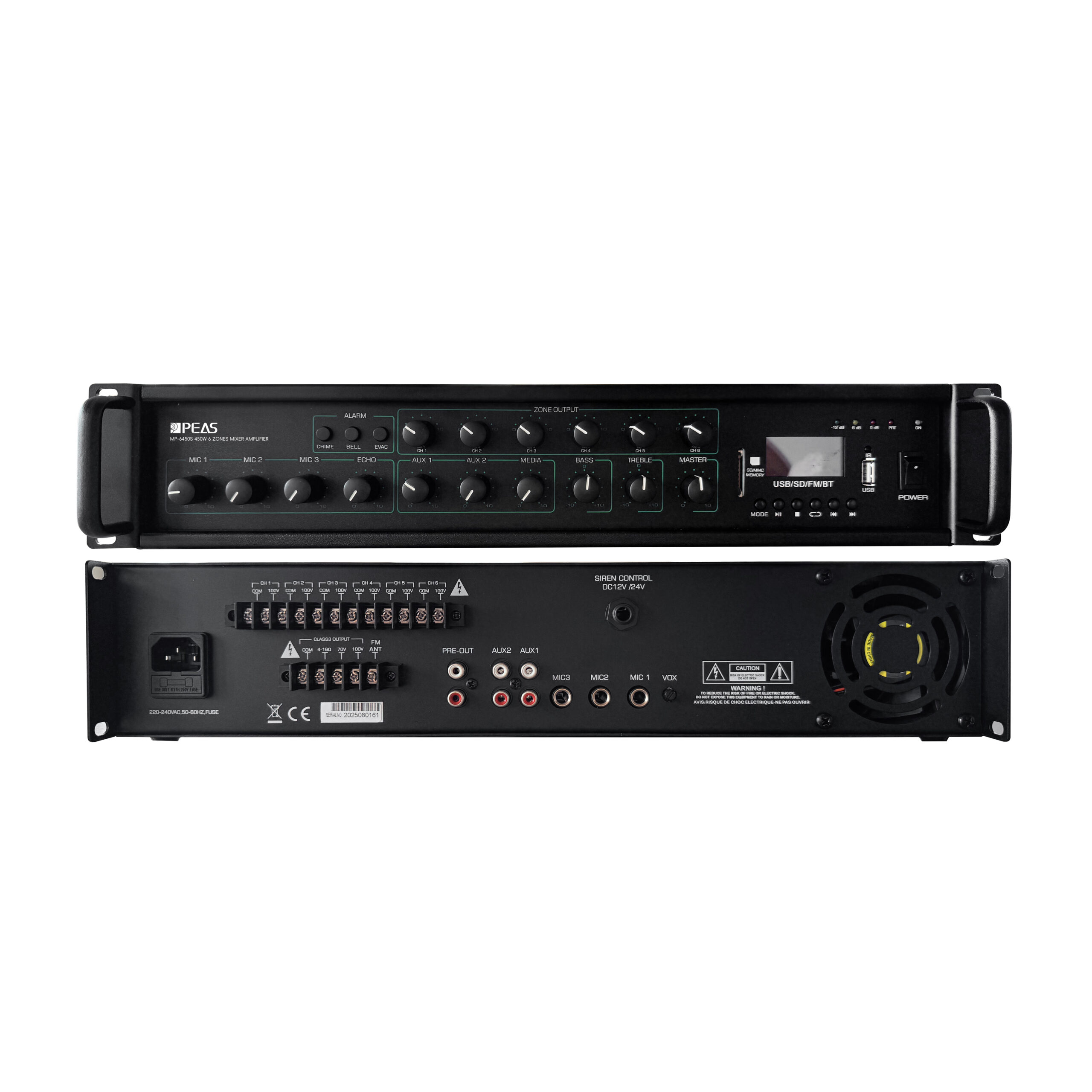

MP-6550S Series 550W 6 Zones Mixer Amplifier with MP3/USB/BT/SD/ECHO/AUX
- 6zones speaker output,each zone with individual volume control
- 3MICinputs, Mic 1 with priority and echo function
- 2AUXline input & 1 AUX line output for power extension
- Each AUX&Mic input with individual volume control
- Bass & Treble tone control for better sound quality control
- 100V &4-16Ω optional speaker output for different uses
- Built with chime, emergency evacuation, alarm sound
- Support DC24V fire strong cut input to trigger alarm sound
- Support MP3/FM/SD/Bluetooth version 5.0(Distance 10m)
- Support remote controller
- Protection of overload, overheating, over-current, etc.,
| Model | MP-6120S | MP-6250S | MP-6350S | MP-6450S | MP-6550S | MP-6650S | |||||
| Rated Power | 120W | 250W | 350W | 450W | 550W | 650W | |||||
| Speaker Output | 100V & 4-16 Ω | ||||||||||
| Input A/C power voltage |
AC210-240V 50Hz |
||||||||||
| A/C Fuse | 4A | 5A | 6.3A | 8A | 12A | 15A | |||||
| 70v Output impedance | 33.5 Ω | 20 Ω | 14 Ω | 11 Ω | 8.5Ω | 7.5Ω | |||||
| 100v Output Impedance | 67Ω | 40Ω | 28.5Ω | 22Ω | 17Ω | 15.3Ω | |||||
| Frequency Response | 20KHz -60Hz <-1dB> | ||||||||||
| THD | 100VOUT<-3dB> 0.5% | ||||||||||
| AUX INPUT | 300mV | ||||||||||
| MIC INPUT | 4mV | ||||||||||
| S/N Ratio | >80dB | ||||||||||
| PEC OUT | 650mV-750mV | ||||||||||
| Dimension: | 483mmx88mmx320mm | ||||||||||
| Weight: | 12KG | 13.5KG | 14.5KG | 17.5KG | 20.5KG | 22.5KG | |||||
