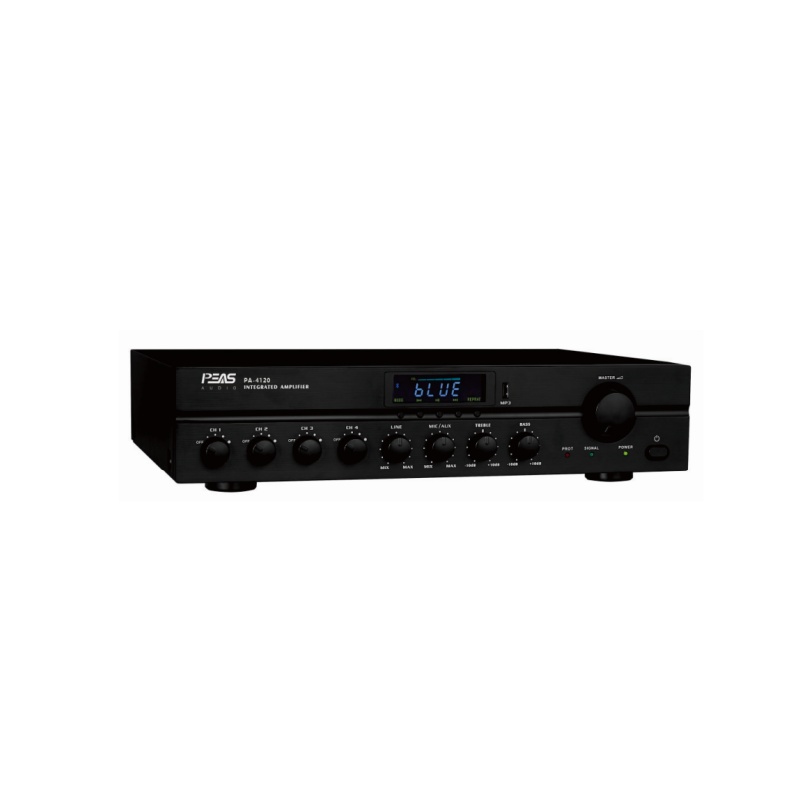

PA-4120 4 Zones 120W Stereo Mixer Amplifier
Features：
· 4 zones Stereo mixer amplifier with 100v and 8Ω output
· Built with LCD screen for Bluetooth/USB/FM display
· 4CH input and can adjust the volume independently
· Support internal music source output, hand in hand next level amplifier
· Support LINE and MIC input, priority level: MIC>LINE/Bluetooth/USB/FM
· The priority function comes with a knob to control the length of priority time
· Independent volume adjustment of each channel, high and low bass adjustment
· Built-in constant voltage output or stereo output toggle switch
· Suitable for villas, fitness studios, dance studios, public or private gardens, small and medium-sized supermarkets,shops,markets, stations, etc.
| Product Model | PA-4120 | PA-4240 | PA-4360 | ||
| Constant Pressure Output | 100V/ 120W | 100V/ 240W | 100V/ 360W | ||
| Stereo Output | 8Ω /2X60W | 8Ω/2X120W | 8Ω/2X180W | ||
| Sound Source Category | MIC / LINE / Bluetooth /USB /FM | ||||
| Input Amplitude | MIC 4~8mV/600ΩUnbalaced LINE 500mV/10KΩUnbalaced |
||||
| Output Mode | Constant pressure output or stereo output | ||||
| Volume Control | BASS:+10dB,at 100Hz TREBLE:+10Db,at 10KHz | ||||
| Constant Pressure Frequeney Response | 50Hz-18kHz, ± 3dB | ||||
| Constant Resistance Frequeney Response | 20Hz-20kHz, ± 3dB | ||||
| Constant Pressure Zone Control | 4zone + 1 all,zone maximum120-360W+ all 120-360W | ||||
| Constant Pressure Volume | 4 zone/5 stalls can be independently adjustable | ||||
| Priority | MIC/LINE/Bluetooth/USB/FM | ||||
| Protection function | Signal input over-protection/output overload protection/ outputshort-circuit protection/over-heat protection |
||||
| Heat dissipation mode | 55° C overheating automatic air cooling | ||||
| S/N | MIC275dB,LINE/Bluetooth/USB/FM≥85dB | ||||
| Net Weight | 9.6kg | 11.5kg | 13.5kg | ||
| Unit Dimensions | 482x88x326 mm | ||||
