WP-22 20W Miniature satellite coaxial speaker with power tap
●Commercial PA system wall-mounted speaker.
● Rated output power 20W at 70V/100V&16Ω.

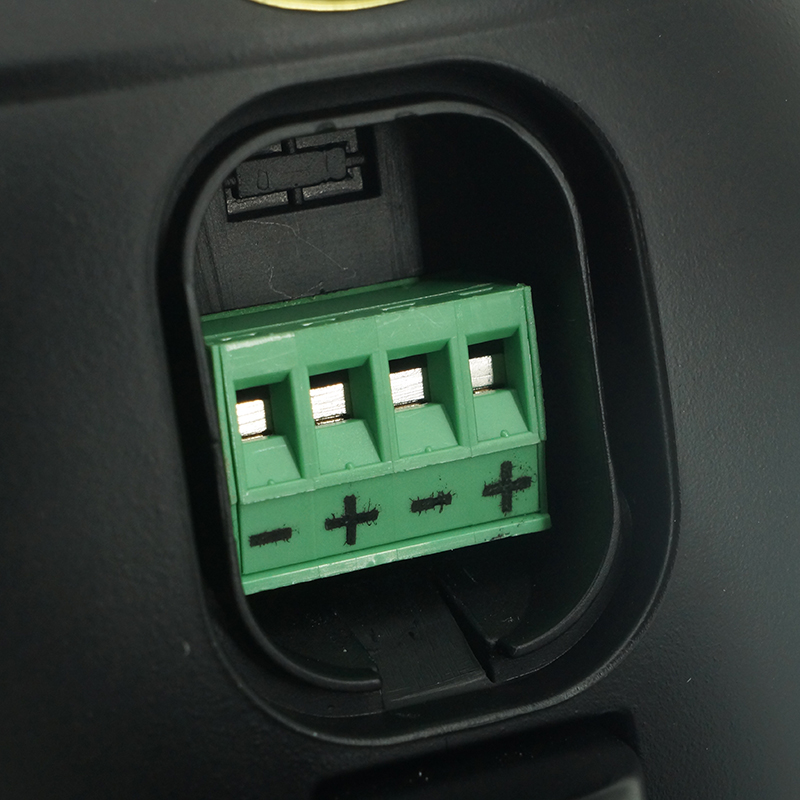

● Power tap is optional according to user’s need.

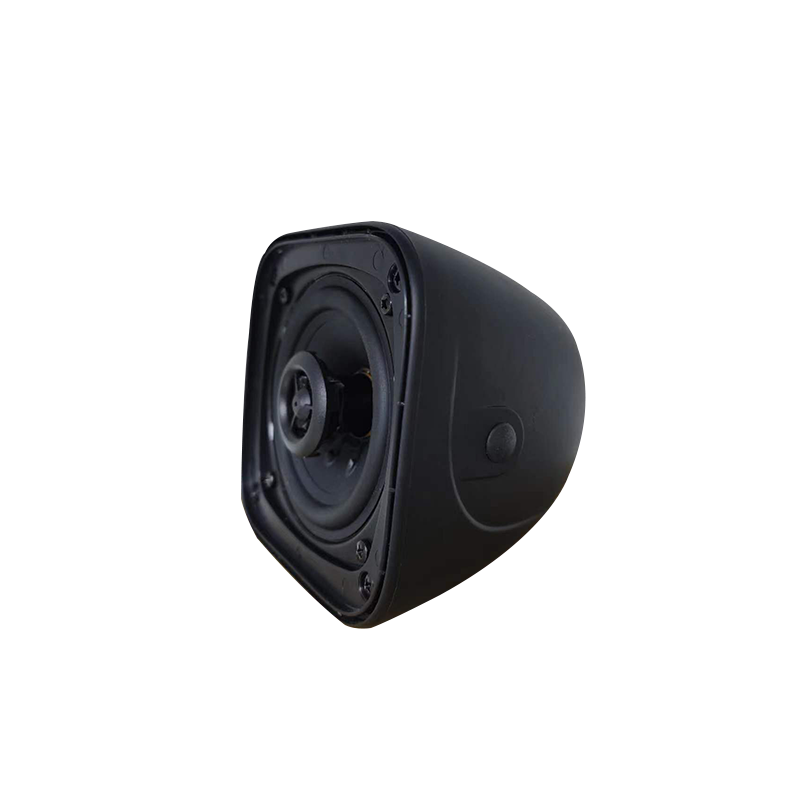

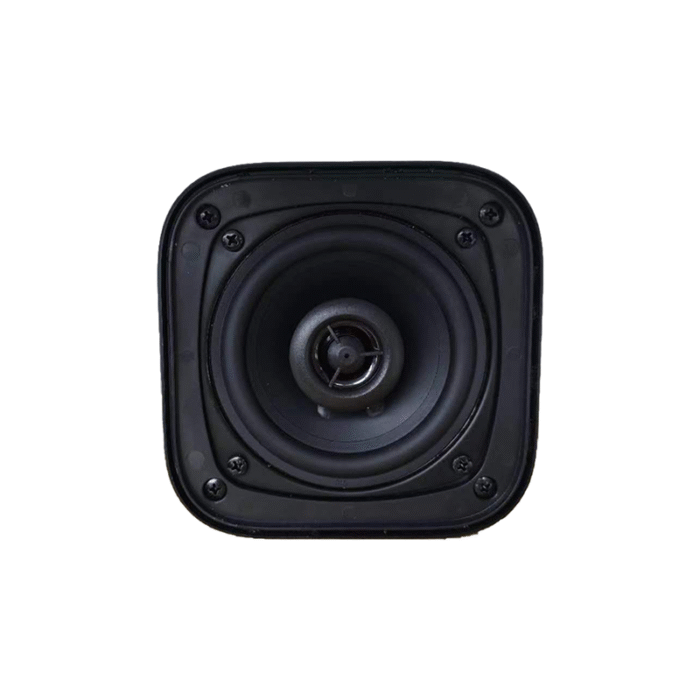

● 4″ coaxial driver unit.

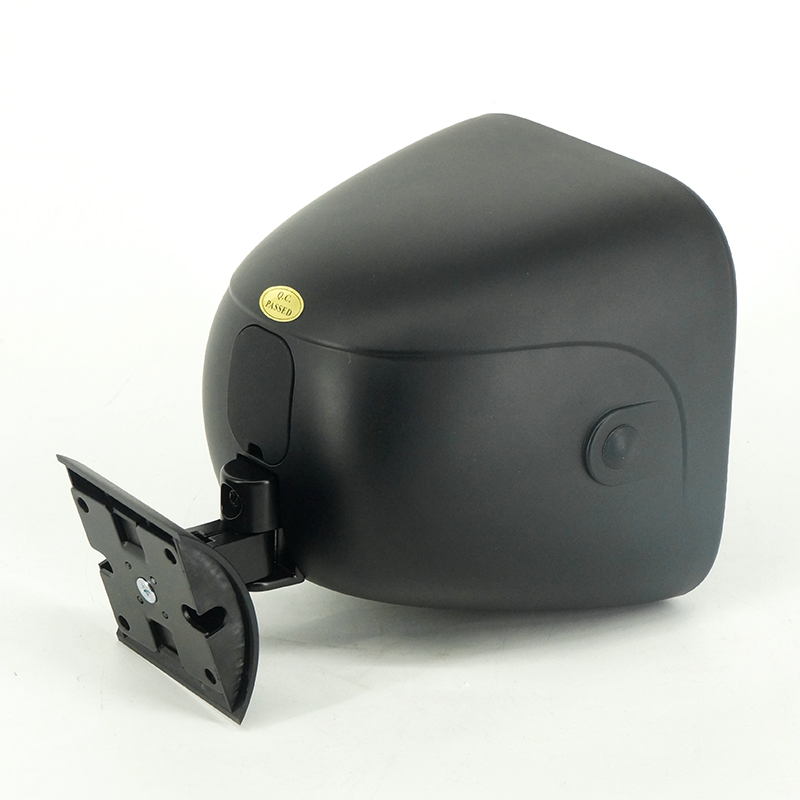

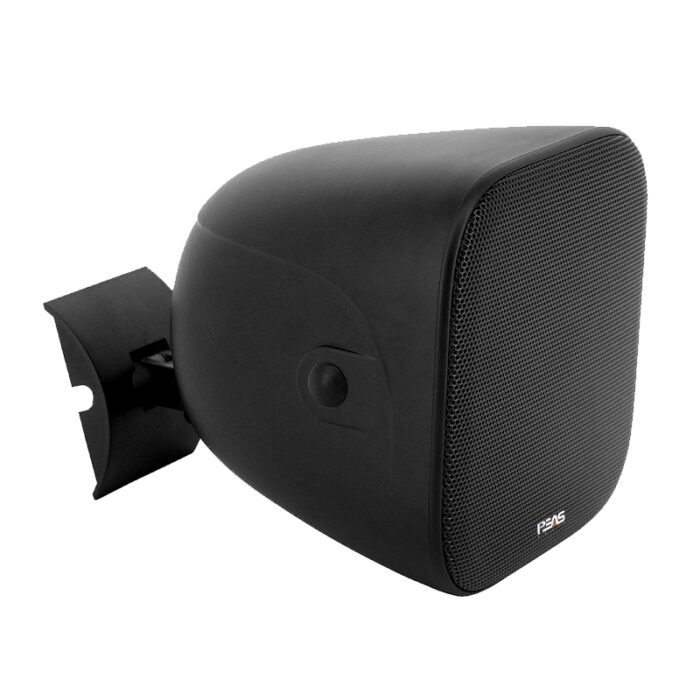

● Quick installation with brackets.
● Small and neat appearance with extraordinary sound quality.
● Ideal for offices, hotels, bars and shopping mall public address system.
| Model | WP-22 |
| Speaker Unit | Bass 4 "*1 + treble 1/2" *1 |
| RMS | 20W |
| impedance | 16Ω+20% |
| Frequency | 110Hz-20KHz +10% |
| Sensitivity(1m,1W) | 84 ±dB |
| Input Voltage | 70V/100V |
| Max SPL | 83+3dB(1M/1W) |
| Weight | 1.2Kg |
| Product Size | 132*132*126mm |
| Operating Temperature | -25°C to+55℃℃ |
| Storage Temperature | -40°℃ to+70°C |
| Relative Humidity | ≤95% |
| Materials | ABS+aluminium mesh |
| Mounting hole size | 42*42mm/M4 Self tapping screws |
