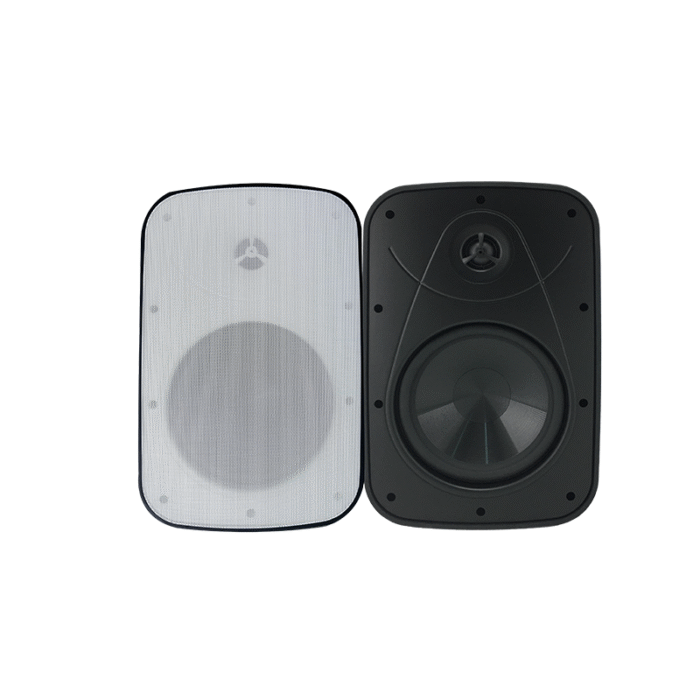

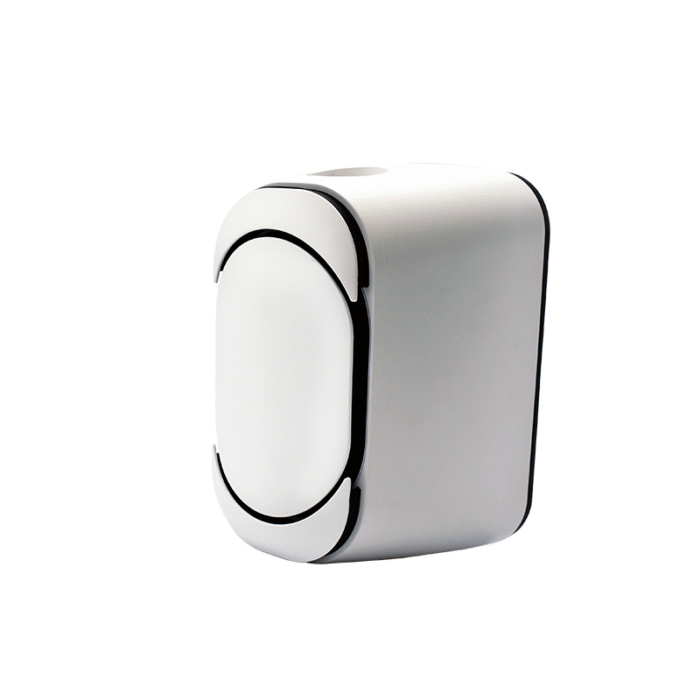

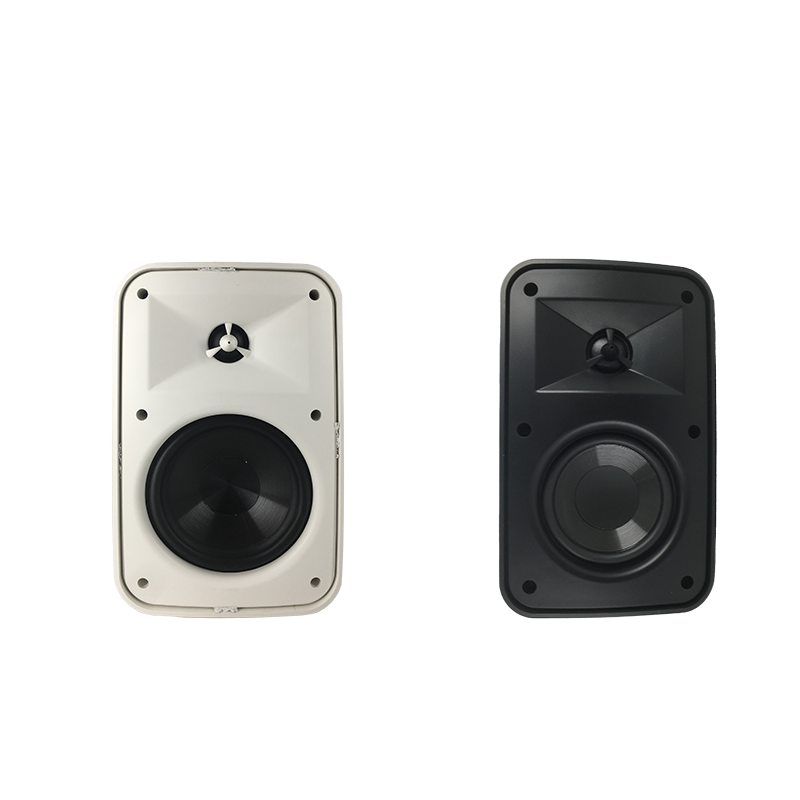

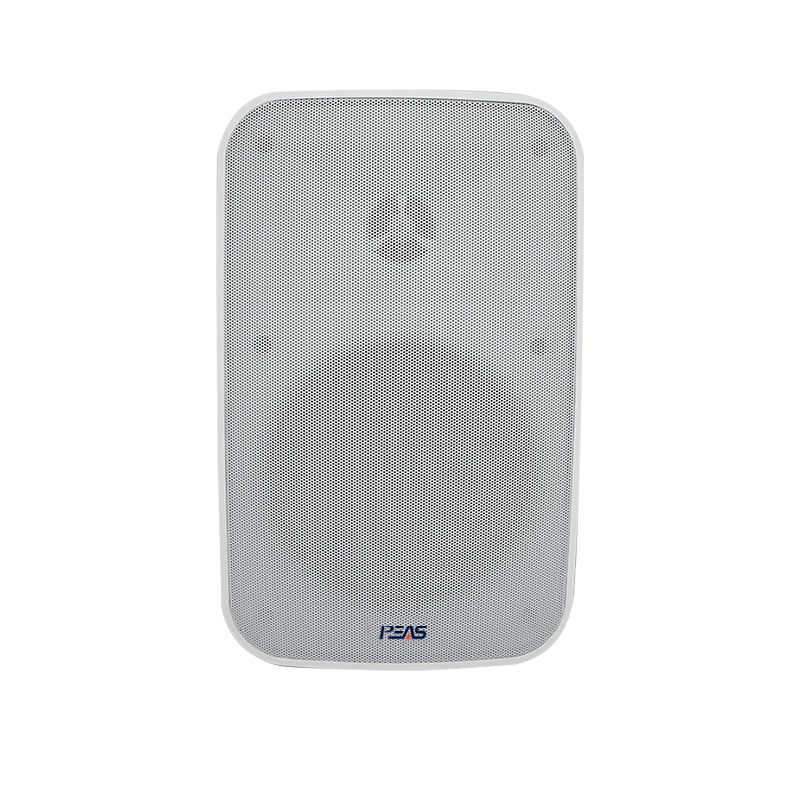

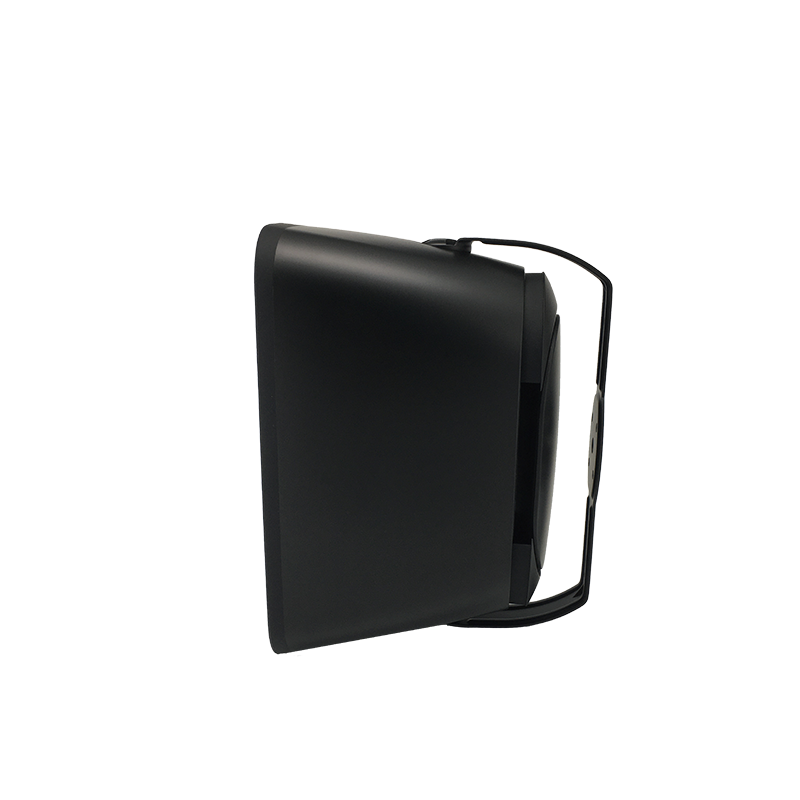

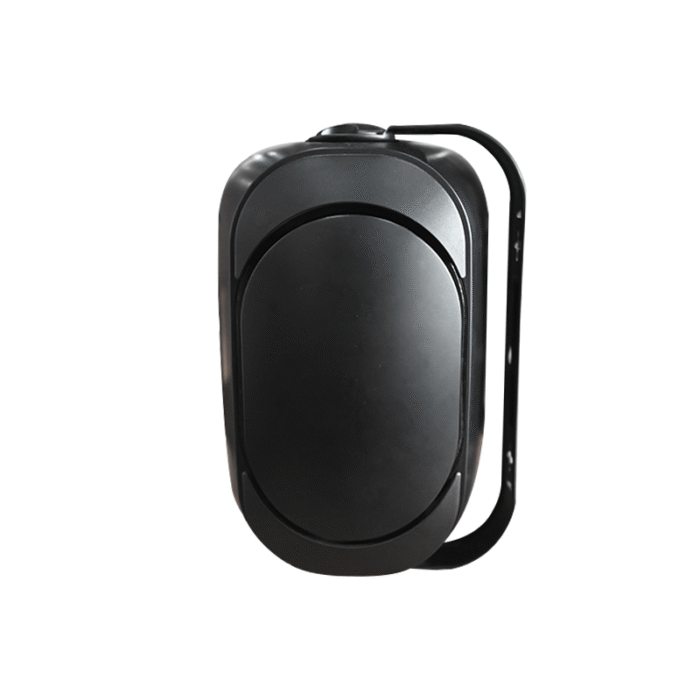

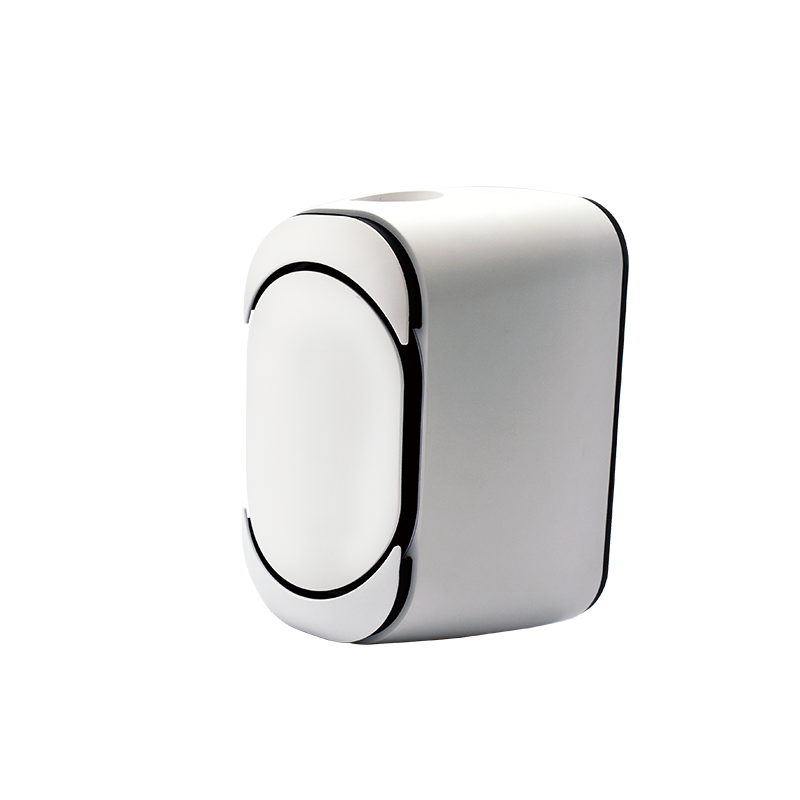

WP-S01 20W IPX66 Waterproof Wall-Mounted PA Speaker
●Commercial PA system wall-mounted speaker
● Exclusive optimal bass enhancement radiator technology
● IP66, all weather speaker for indoor and outdoor use
● With power tap for 70V/100V and 8Ω
● Rated output power 20W/40W/60W
● 1×5”, 1×6.5” or 1×8”for woofer and 1×1” for tweeter
● Quick installation with water-proof brackets
● Fashionable appearance with extraordinary sound quality
● Ideal for schools, offices, hotels, stations and meeting rooms public address system
| Model | WP-S01 | WP-S02 | WP-S03 |
| Tweeter | 1'(25 mm) Silk soft dome | 1"(25mm) Silk soft dome | 1.1’’(28mm) Silk soft dome/Aluminum dome |
| Woofer | 5"(125mm) Graphite Cone Rubber Surround | 6.5"(165mm) Graphite Cone Rubber Suround |
8’’(203mm) Graphite Cone , Rubber Surround |
| Frequency Range +/-3 | 100 Hz-20k Hz | 90 Hz-20k Hz | 80 Hz-20k Hz |
| Power Handing RMS | 40 Wprogram ,20 W (EEE 219 ) | 80W program ,40W (IEEE 219) | 80W program , 50W (IEEE 219) |
| Sensitivity | 85 dB | 86 dB | 87 dB |
| Taps | 8Ω-0-20W-10W-5W-2.5W | 8Ω,0,40W,20W,10W.5W | 8Ω,0,50W,25W,12.5W,6.25W |
| Impedance | 8 Ω | ||
| Termination | Pluggable Terminal Blocks | ||
| Attachment | Brackets, Grille | ||
| Dimensions H*V*D | 258mm x 170mm x 168mm | 285mm x 198mmx 195mm | 381mm x 250mm x 250mm |
| Certifications | IP66 | ||
| Material | ABS | ||
